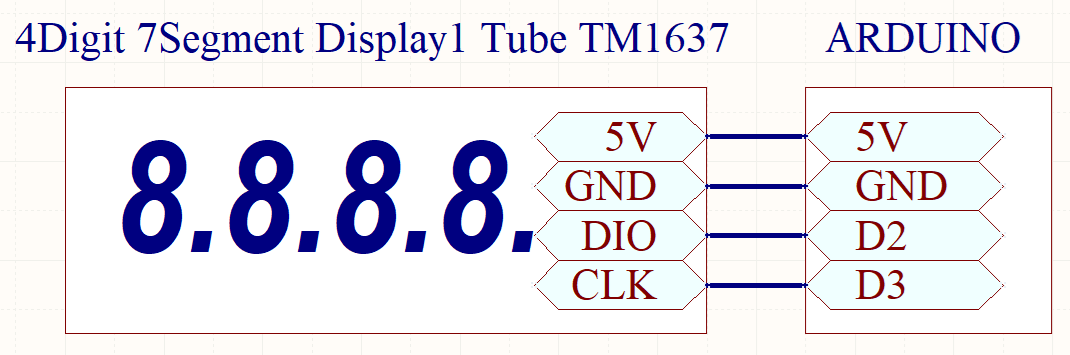

| Testing the (new) TM1637 LED Display with offered Arduino code ( all segments, decimal dots and level of brightness...) | ||
|---|---|---|
| |
Accessories: ARD1 - ARD2 - ARD3 | Download the HEX codes below, unpack and upload to the proper Arduino board (Use a free XLoader). |
| TM1637: 1 - 2 - 3 - 4 | Nano/Uno: HexCode-m328 - Mega: HexCode-m2560 - Or for ArduinoIDE users: Here | |

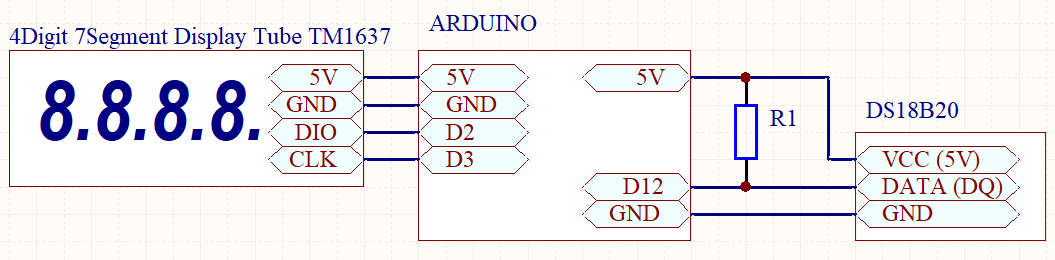

| Testing the (new) DS18B20 temperature sensor on TM1637 LED... | ||
|---|---|---|
 |
Accessories: ARD1 - ARD2 - ARD3 | Download the HEX codes below, unpack and upload to the proper Arduino board (Use a free XLoader). |
| TM1637: 1 - 2 - 3 - 4 | Nano/Uno: HexCode-m328 - Mega: HexCode-m2560 - Or for ArduinoIDE users: Here | |
| DS18B20: 1 - 2 - 3 | Resistor R1: 4K7 to 1K (smaller value for long distance sensor cable) - Show Temp. in C! | |

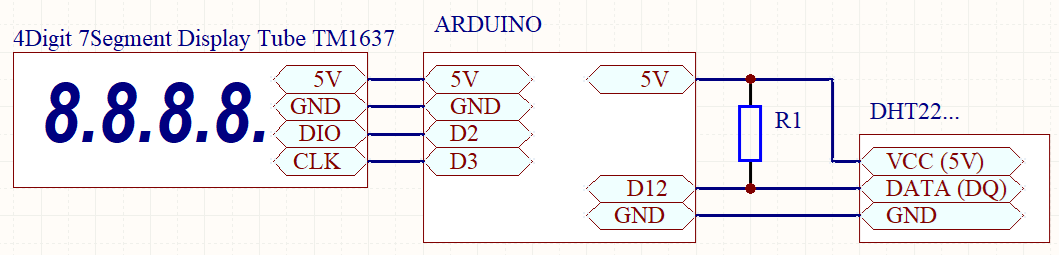

| Testing the (new) DHT22 Temp&Humi sensor on TM1637 LED... | ||
|---|---|---|
 |
Accessories: ARD1 - ARD2 - ARD3 | Download the HEX codes below, unpack and upload to the proper Arduino board (Use a free XLoader). |
| TM1637: 1 - 2 - 3 - 4 | Nano/Uno: HexCode-m328 - Mega: HexCode-m2560 - Or for ArduinoIDE users: Here | |
| DHT22: 1 - 2 - 3 | Resistor R1: 4K7 to 1K (smaller value for long distance sensor cable) - Show Temp. in C and Humidity in rh%; | |

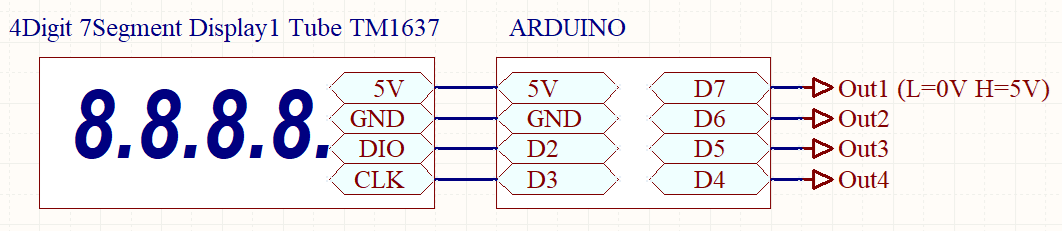

| Testing the (new) 4xOutputs & TM1637 LED... | ||
|---|---|---|
 |
Accessories: ARD1 - ARD2 - ARD3 | Download the HEX codes below, unpack and upload to the proper Arduino board (Use a free XLoader). |
| TM1637: 1 - 2 - 3 - 4 | Nano/Uno: HexCode-m328 - Mega: HexCode-m2560 - Or for ArduinoIDE users: Here | |
| Shield: 1 - 2 - 3 | ||
