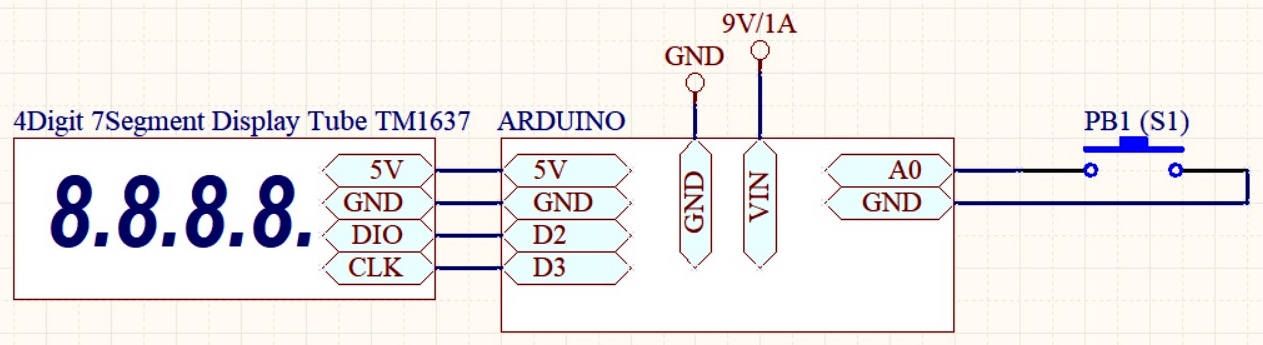

Power-On counter with memorizing and external reset (4digit - up to 9999)
When the power applies the counter increase (up to 9999). At any time External reset enabled on S1 (push-button, push-button with kay, switch...)
Need additional accessories (links): Display4digit: 1 - 2 & S1: 1 - 2 - 3
Download the HEX codes below, unpack and upload to the proper Arduino board (Use a free net tool for example XLoader)
ATmega328-16MHz-5V (NANO, UNO, ...): Code4dig-m328
AtMega2560 (Mega, Mega 2560, ...): Code4dig-m2560



click to enlarge

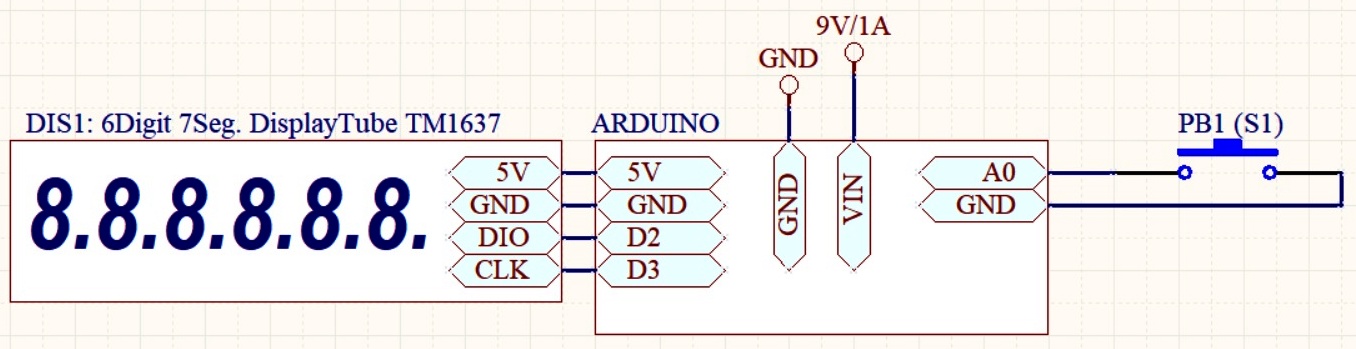

Power-On counter with memorizing and external reset (6digit - up to 999999)
When the power applies the counter increase (up to 999999). At any time External reset enabled on S1 (push-button, push-button with kay, switch...)
Need additional accessories: Display6digit: 1 - 2 & S1: 1 - 2 - 3
Download the HEX codes below, unpack and upload to the proper Arduino board (Use a free net tool for example XLoader)
ATmega328-16MHz-5V (NANO, UNO, ...): Code6dig-m328
AtMega2560 (Mega, Mega 2560, ... ): Code6dig-m2560


click to enlarge
